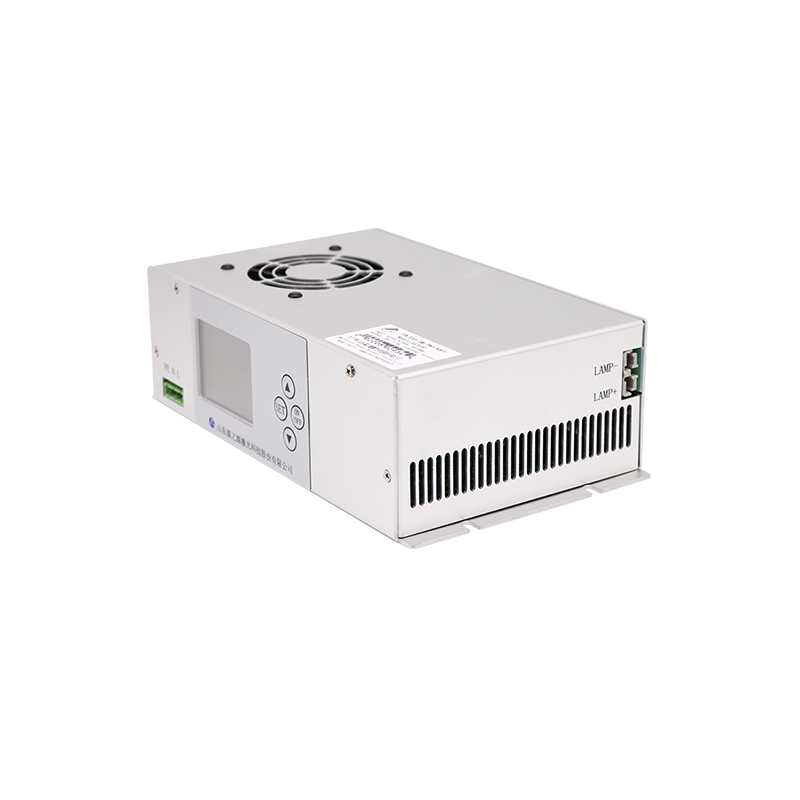

Real time display: Real time digital display of voltage and current, convenient for monitoring voltage and current.
Interleaved parallel PFC new technology: adopting interleaved parallel PFC new technology to adapt to wide input voltage operation.
Adjustable current range: The current can be adjusted freely between 10-25A. To achieve illumination, it is recommended that the starting current be greater than 17A; /p>
Comprehensive protection mechanism: extremely high overall efficiency and perfect load overcurrent, overload protection, and open circuit protection, effectively increasing power supply reliability.

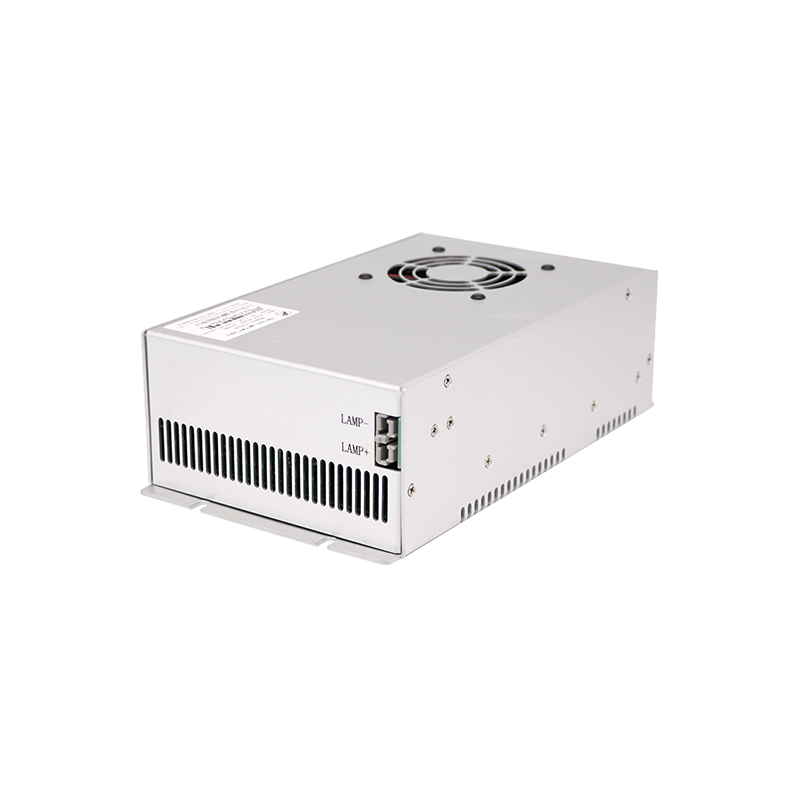

Integrated design: The constant current and trigger modules are integrated, and the output line is directly connected to the xenon lamp for easy use.
Compact power size: The compact power size facilitates device installation.
Real time digital display of voltage and current, adjustable from 10-25A, recommended starting at 17A or above for precise control and stable lighting.
Adopting interleaved parallel PFC technology to adapt to wide voltage inputs, coupled with overcurrent, overload, and open circuit protection, to improve power efficiency and reliability.
Integrated constant current trigger module, directly connected to xenon lamp, eliminating complex wiring; Compact body, flexible installation, space saving.
| Specifications | LCX075 | LCX150 | LCX350 | OLCX450 |
|---|---|---|---|---|
| Input Voltage | 90-265VAC，Wide Scope | |||
| Communication Frequency | 50/60Hz | |||
| Cold surge current | ≤20A (AC220V input) | |||
| Leakage Current | <0.7mA(AC220V input) | |||
| Maximum Output Current (A) | 6 | 8 | 20 | 45 |
| Adjustable output current (A)* | 4-6 | 5-8 | 15-20 | 22-45 |
| Adapt to xenon lamp work voltage (A) | 14 | 20 | 20 | 20 |
| Current Ripple | <1% | |||
| Stability | <0.1% | |||
| Efficiency | ≥85%（at full load） | |||
| Display and human-computer interaction | 2.8 Dot matrix LCD display, key Parameter input | |||
| Mean Time Between Failures | ≥50000H | |||
| Voltage Resistant | input-output，input chassis：AC1500V/60s ≤10mA;Output - Chassis：AC500V/60s≤10mA | |||
| Protect | Output overcurrent, overload, and open circuit protection | |||
| Operating | Temperature：-10-40°C, Relative Humidity：≤90% | |||
| Cooling Method | forced air cooling | |||
Warranty: 360 days
▶ The warranty period for power products is 12 months, calculated from the date of purchase.
▶ During the warranty period, faults that are not caused by human factors can be repaired free of charge; Malfunctions caused by human damage or excessive use require paid repairs.
▶ Before using this power supply, please read the manual carefully. We are not responsible for any damage or problems caused by improper use or failure to follow the manual
