Flexible installation: The X/XA series is presented in a smaller size, with consistent installation holes for different power supplies, providing flexible installation and high cost-effectiveness.
Wide compatibility: Perfectly compatible with CO2 lasers ranging from 30W to 150W both domestically and internationally, meeting diverse equipment needs.

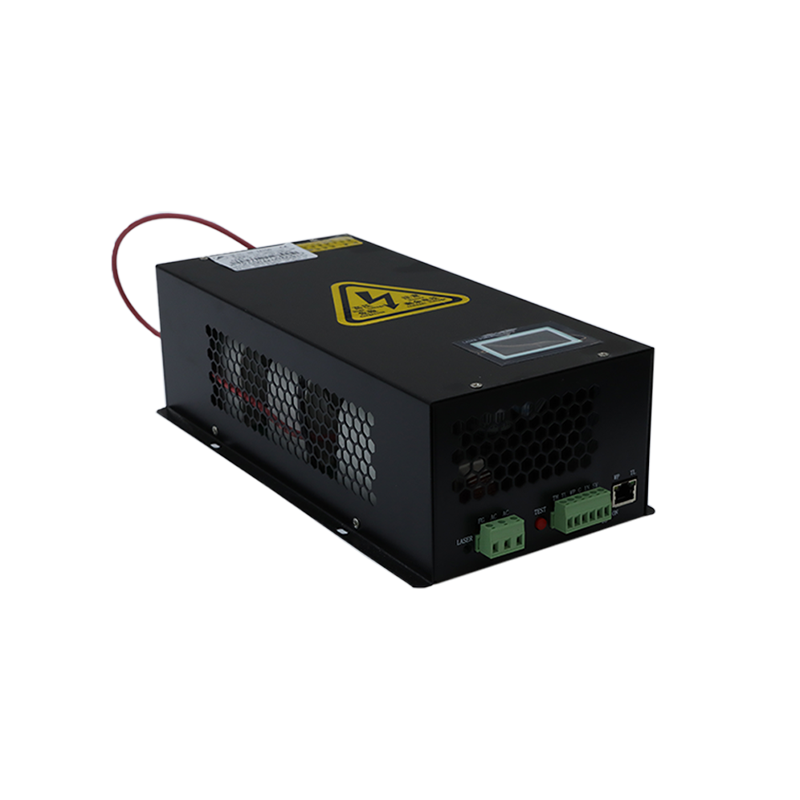

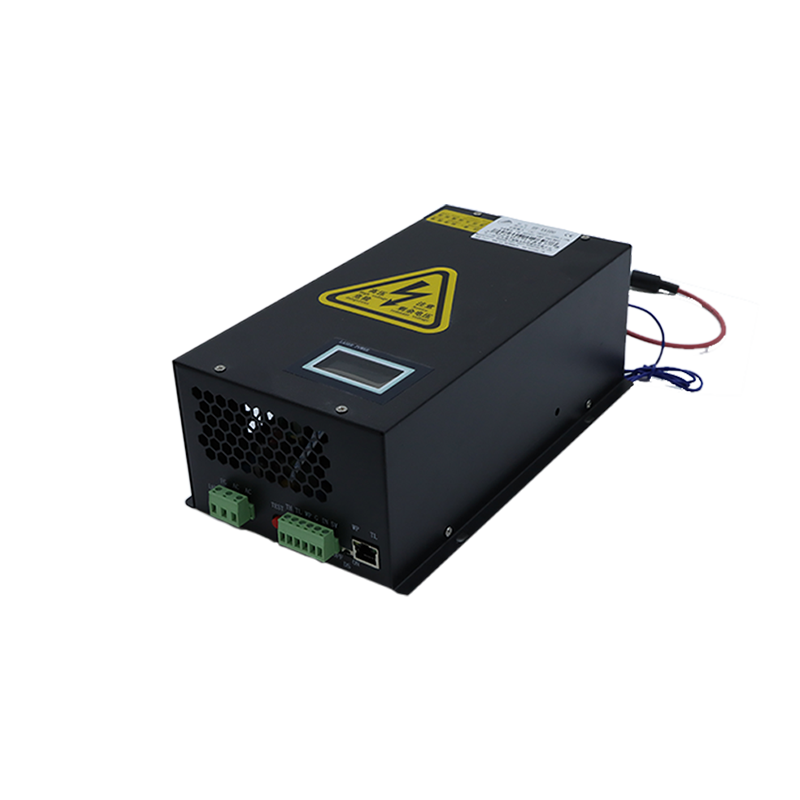

Intelligent digital display: Equipped with a digital display screen, it can display the current size, light indication signal, and water protection signal in real time. At the same time, it integrates a potentiometer to manually adjust the current and test buttons, making the operation simple and convenient.
Upgrade worry free: The LCD display screen and pointer ammeter have the same installation size, making it easy to achieve perfect replacement, and the product can be seamlessly upgraded.
Easy maintenance: The X series is equipped with a standard Ethernet cable for external display, while the XA series has a built-in LCD display and exclusive fault self checking function. It does not require professional tools and can diagnose laser tube or power supply faults with just one click, simplifying the maintenance process and improving maintenance efficiency.
Compact size, unified installation holes for different powers, strong adaptability, high cost-effectiveness, and saves equipment space.
Perfectly compatible with CO2 lasers ranging from 30W to 150W both domestically and internationally, meeting diverse equipment requirements.
Support fault self checking function, one click diagnosis of laser tube or power supply problems, no need for professional tools, greatly improving maintenance efficiency.
| Model | X50/XA50 | X60/XA60 | X80/XA80 | X100/XA100 | X150/XA150 |
|---|---|---|---|---|---|
| Input Voltage | AC220V（110V Customizable） | ||||
| Communication Frequency | 47-440Hz | ||||
| Maximum Input Power | 250W | 300W | 450W | 600W | 750W |
| Maximum Input Current | 1A | 1.5A | 2.3A | 2.7A | 3.5A |
| Maximum Output Voltage | DC 25KV | DC 25KV | DC 30KV | DC 35KV | DC 40KV |
| Maximum Output Current | DC 20mA | DC 22mA | DC 25mA | DC 32mA | DC 35mA |
| Efficiency | ≥ 90% （at full load） | ||||
| Mean Time Between Failures | ≥ 10,000 hours | ||||
| Response Speed | ≤1ms（The time from the switch signal to the output current rising to 90% of the set current） | ||||
| Voltage Resistant | Input-output, input-output chassis：AC1500V 10mA 60s；Connect the output negative pole to the casing | ||||
| Operating | Temperature：-10-40℃ Relative Humidity：：≤ 90% | ||||
| Cooling Method | forced air cooling | ||||
| Matching Laser Tube Power | 30-50W | 50-60W | 60-80W | 80-100W | 130-150W |
| Dimensions (mm) L×W×H | 194×158×90 | 194×158×90 | 228×158×90 | 263×158×90 | 345×158×90 |
| Shell Color | black | ||||
| Weight (KG) | 1.7 | 1.7 | 2.2 | 2.5 | 3.6 |
Warranty: 360 days
▶ The warranty period for power products is 12 months, calculated from the date of purchase.
▶ During the warranty period, faults that are not caused by human factors can be repaired free of charge; Malfunctions caused by human damage or excessive use require paid repairs.
▶ Before using this power supply, please read the manual carefully. We are not responsible for any damage or problems caused by improper use or failure to follow the manual
