Strong universality: The T/TA series laser power supply is currently the most widely used and applied laser power supply, selling well both domestically and internationally for decades.
Wide compatibility: Perfectly compatible with CO2 lasers ranging from 30W to 300W both domestically and internationally, meeting diverse equipment needs.
Intelligent digital display: Real time display of current magnitude, light output indication signal, and water protection signal through an external digital display screen connected to a network cable. At the same time, an integrated potentiometer can manually adjust the current and test buttons, making operation simple and convenient.
Upgrade worry free: The LCD display screen and pointer ammeter have the same installation size, making it easy to achieve perfect replacement, and the product can be seamlessly upgraded.
Easy maintenance: The power supply comes with a manual light output test function, making it convenient for customers to maintain on site.
Safe and stable: equipped with power on, laser output, TL, WP status indicator lights, real-time display of equipment operation status, ensuring the safety and stability of laser operations.
Compatible with CO2 lasers ranging from 30W to 300W, it perfectly supports various devices both domestically and internationally, meeting diverse needs.
The network cable is connected to an external display screen for real-time monitoring of current, light output, and water protection signals. It integrates potentiometers and testing buttons for easy operation.
Equipped with power on, laser output, TL, WP status indicator lights, supporting manual testing of light output function, ensuring safe laser operation and easy maintenance.
| Model | T50 | T60 | TA100 | TA150 |
|---|---|---|---|---|
| Input Voltage | AC220V（110V Customizable） | |||
| Communication Frequency | 47-440Hz | |||
| Maximum Input Power | 220W | 350W | 600W | 750W |
| Maximum Input Current | 1A | 1.5A | 2.7A | 3.5A |
| Maximum Output Voltage | DC 25KV | DC 35KV | DC 40KV | DC 50KV |
| Maximum Output Currentnt | DC 20mA | DC 22mA | DC 32mA | DC 38mA |
| Efficiency | ≥ 90% （at full load） | |||
| Mean Time Between Failures | ≥ 10,000 hour | |||
| Response Speed | ≤1ms（The time from the switch signal to the output current rising to 90% of the set current） | |||
| Voltage Resistant | Input-output, input-output chassis：AC1500V 10mA 60s；Connect the output negative pole to the casing | |||
| Operating | Temperature：-10-40℃ Relative Humidity：：≤ 90% | |||
| Cooling Method | forced air cooling | |||
| Matching Laser Tube Power | 30-50W | 50-70W | 80-100W | 100-150W |
| Dimensions (mm) | 176×169×97 | 205×178×96 | 283×196×96 | 328×239×101 |
| Shell Color | black | |||
| Weight (KG) | 1.65 | 2.2 | 2.95 | 4.6 |
Warranty: 360 days
▶ The warranty period for power products is 12 months, calculated from the date of purchase.
▶ During the warranty period, faults that are not caused by human factors can be repaired free of charge; Malfunctions caused by human damage or excessive use require paid repairs.
▶ Before using this power supply, please read the manual carefully. We are not responsible for any damage or problems caused by improper use or failure to follow the manual
Non metallic processing equipment such as laser engraving machines, laser cutting machines, laser marking machines, knife molds, laser drilling machines, etc.

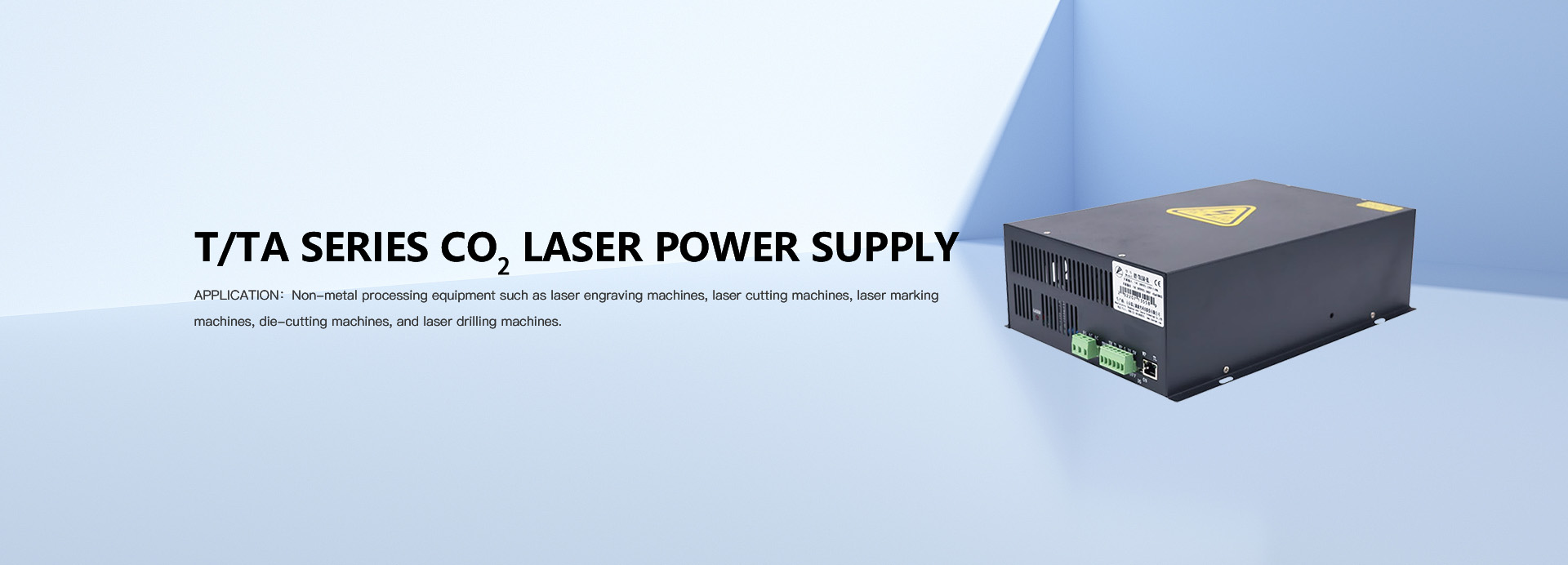

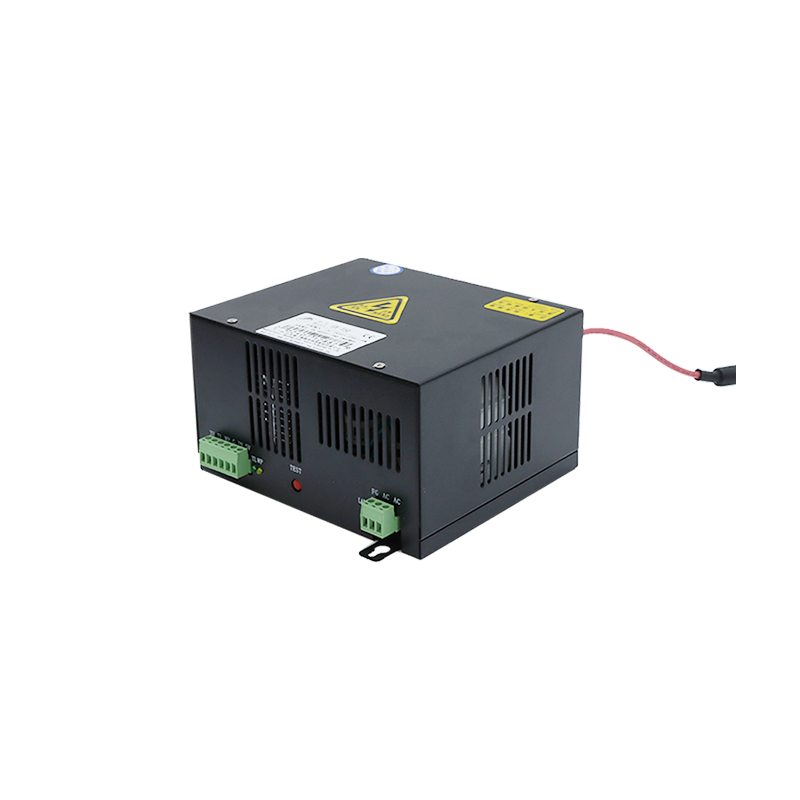

T/TA Series CO₂ Laser Power Supply
T/TA Series CO₂ Laser Power Supply
