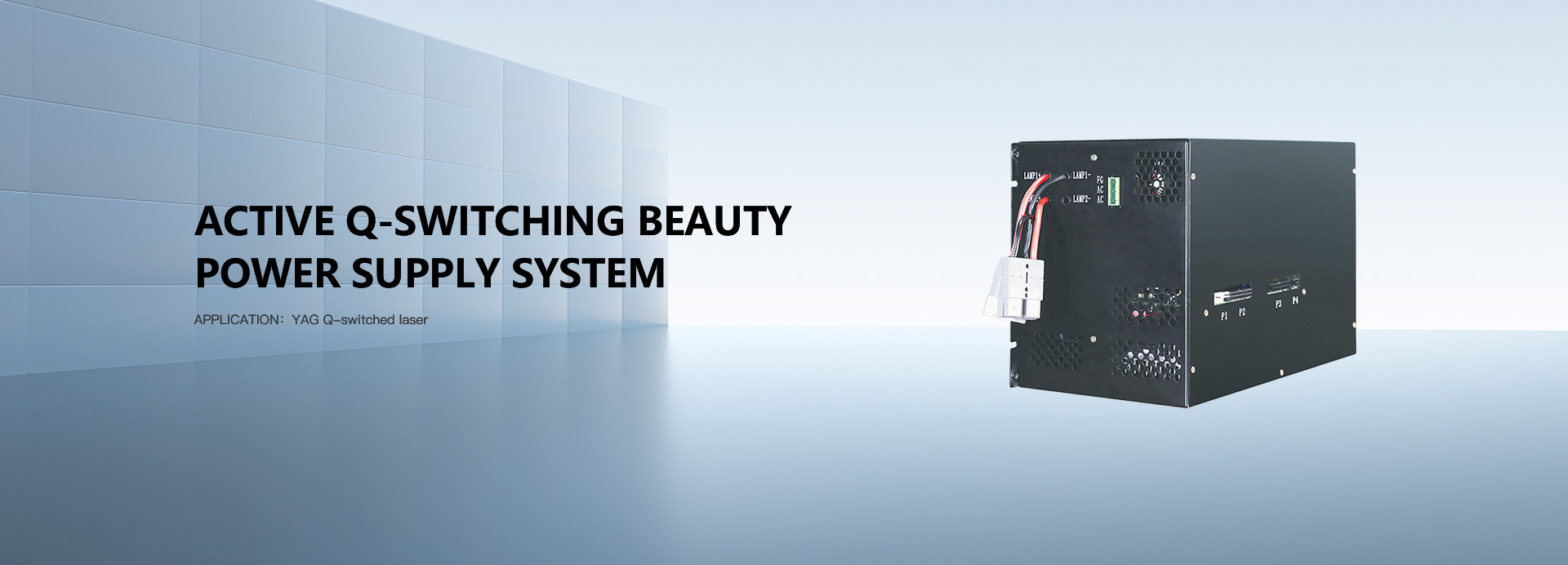

Contains control board, energy storage capacitor, output switch, and pre combustion circuit;
Single and dual output pulse energy can be adjusted separately, with a brand new control system;
Stable pulse output voltage, Q switch delay automatic search;
Unique and rich parameter settings and storage functions, each voltage and Q delay can be set separately for easy debugging;
Configure Q driver module, high voltage pulse edge 15ns (rising edge 10% -90%);
The whole machine is designed in accordance with the YY0505-2012 and IEC60601-1-2 standards for medical electrical equipment.
Single and dual pulse energy can be independently adjusted, Q-switch delay automatic search, voltage parameter graded storage, achieving precise treatment control.
High voltage pulse rising edge of 15ns, integrated pre combustion circuit and energy storage system to ensure stable and efficient energy output.
Compliant with YY0505/IEC60601 international standards, modular design simplifies operation, ensuring safe and reliable medical beauty treatment.
| Power Parameters | ||||
|---|---|---|---|---|
| Input Parameters | Input Voltage | AC220V±15%，47-63Hz | ||
| Leakage Current | 0.4mA/250AC | |||
| Output Parameters | Output Power | single lane 1000W | dual-path 1000W | |
| Maximum output energy of a single pulse (under the condition of a capacitance of 100 μ F) | 45J | 90J | ||
| Output Frequency | 1-10Hz | |||
| Temperature | Work：-15℃ ~ 45℃ Storage：-40℃ ~ 85℃ | |||
| Humidity | No frost or condensation | |||
| Safety regulations and electromagnetic compatibility | Designed in accordance with YY0505-2012 and IEC60601-1-2 standards for medical electrical equipment | |||
| Cooling Method | forced air cooling | |||
| Dimensions（mm） | 340*148*230 | 380*148*260 | ||
| Weight（KG） | 3.5 | 4.8 | ||
Warranty: 360 days
▶ The warranty period for power products is 12 months, calculated from the date of purchase.
▶ During the warranty period, faults that are not caused by human factors can be repaired free of charge; Malfunctions caused by human damage or excessive use require paid repairs.
▶ Before using this power supply, please read the manual carefully. We are not responsible for any damage or problems caused by improper use or failure to follow the manual
