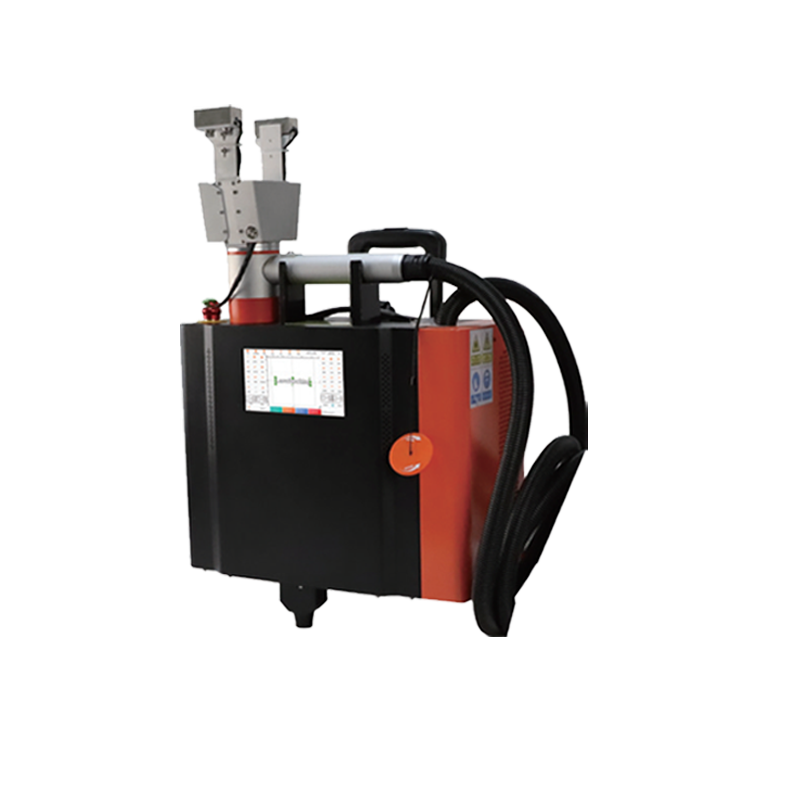

Smaller volume; Adopting a modular structure design, the air-cooled laser structure is composed of a handheld head, control system, and power supply unit, with a higher degree of integration.
Small footprint, convenient transportation, pull rod design, and wear-resistant silent wheels installed at the bottom of the equipment for easy carrying and movement.
Electromagnetic suction type fixed focus frame, easy to adsorb and fix with the surface of metal materials when marking, freeing hands and allowing for deep carving.
Suitable for VIN marking of powertrain, automotive body, gearbox, petroleum machinery, engineering machinery, engine cylinder block, and body sheet metal parts.
Suitable for deep carving processing of various materials, with a marking depth of 0.05mm-3mm.

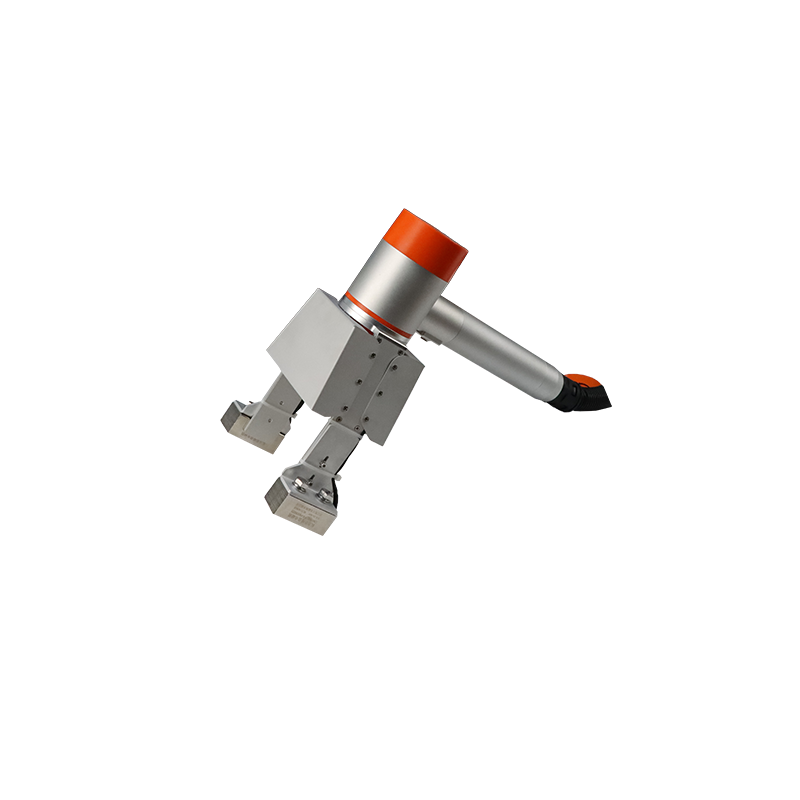

The laser gun head is smaller and lighter in weight, and can be held and fixed for marking. It can be paired with a robotic arm to achieve automated marking, making it easy to integrate.
The software supports secondary development and can be connected to MES, ERP and other systems.
External QR code scanning and one click marking.
High power stable output, supporting 0.05mm-3mm deep carving, electromagnetic suction fixed focus, freeing hands while improving deep carving accuracy and safety.
The pull rod box body and wear-resistant silent wheel design quickly transfer to workshop, outdoor and other scenarios, reducing the footprint by 60% compared to traditional equipment.
Supporting secondary development and MES/ERP system integration to meet traceability management requirements, combined with a barcode scanner to quickly read and mark information, improving efficiency.
| Specifications | Parameter |
|---|---|
| Laser type | Pulse fiber laser |
| Laser Power | 100W/200W/300W |
| Laser Wavelength | 1064-1080nm |
| Maximum pulse energy | 1.5mJ |
| Cooling System | air cooling |
| Pulse width | 500ns |
| Frequency regulation Scope | 45-170Khz |
| Label Scope | 100 * 100mm (50 * 50mm/150 * 150 optional) |
| Carving depth | 0.05-3mm Depending on the material |
| Label Scope | Standard 100 × 100mm (50 × 50mm/150 × 150mm optional) |
| Minimum line width | 0.01mm |
| Positioning Method | Red light positioning |
| Power Supply Method | plug in |
| Voltage Scope | AC110V-220V, 50/60HZ |
| Temperature | 0-40℃ |
| Maximum Power Consumption | ≤1500W |
| Machine Weight | 13-40kg |
Warranty: 360 days
▶ The warranty period for power products is 12 months, calculated from the date of purchase.
▶ During the warranty period, faults that are not caused by human factors can be repaired free of charge; Malfunctions caused by human damage or excessive use require paid repairs.
▶ Before using this power supply, please read the manual carefully. We are not responsible for any damage or problems caused by improper use or failure to follow the manual
