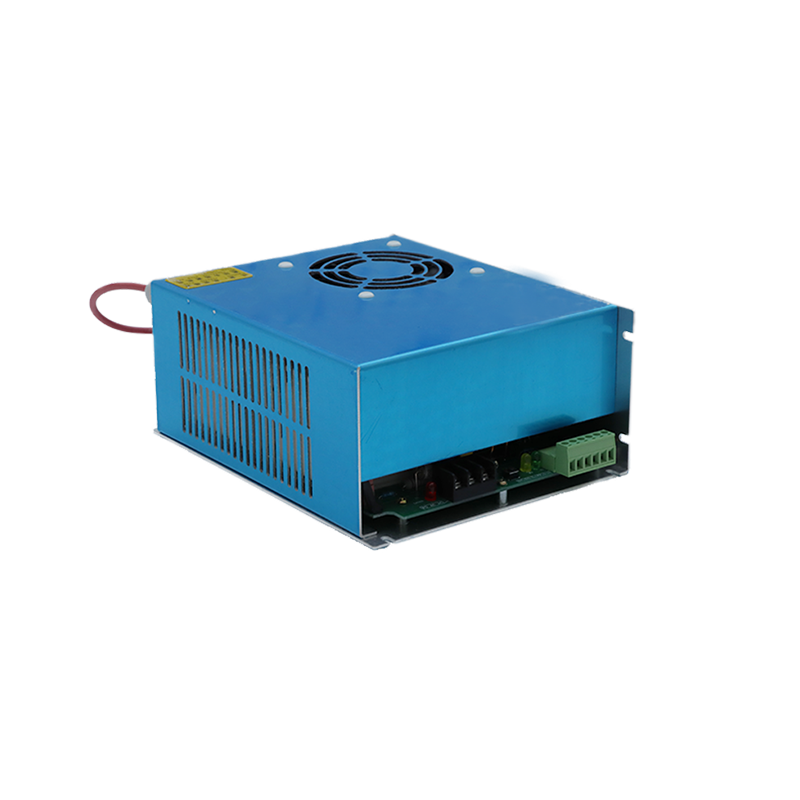

Lightweight design: Flat structure design, lightweight, using an all aluminum casing design, 30% lighter than conventional power supplies.
Simple and reliable: High and low level control of laser start and stop, simple control, high reliability.
Flexible power control: Laser power can be controlled using both analog signals 0-5V and 5V PWM signals.
Easy maintenance: The power supply comes with a manual light output test function, making it convenient for customers to maintain on site.
Safe and stable: equipped with work indicator lights, real-time display of equipment operation status, ensuring the safety and stability of laser operations.
Multiple installation methods: There are two installation methods, which can be installed horizontally or vertically, saving space.
The lightweight design of the all aluminum casing is 30% lighter than conventional power supplies, and the flat structure saves space. Two flexible installation methods are available to meet different equipment needs.
Supports dual-mode power regulation of 0-5V analog signal and 5V PWM signal, with high and low level control for start and stop, simple and stable operation.
Equipped with work status indicator lights for real-time monitoring of operation, with manual light output testing function for easy on-site rapid detection and maintenance.
| Model | DY10 | DY13 | DY20 |
|---|---|---|---|
| Input Voltage | AC220V (110VCustomizable) | ||
| Communication Frequency | 47-440Hz | ||
| Maximum Input Power | 500W | 600W | 750W |
| Maximum Input Current | 2.3A | 2.7A | 3.5A |
| Maximum Output Voltage | 35KV | 40KV | 50KV |
| Maximum Output Current | 25mA | 32mA | 38mA |
| Efficiency | ≥ 90% (at full load) | ||
| Mean Time Between Failures | ≥ 10,000 hour | ||
| Response Speed | ≤1ms（the time from the switch signal to the output current rising to 90% of the set point current） | ||
| Voltage Resistant | input-output，input chassis：AC1500V 10mA 60s；Connect the output negative pole to the casing | ||
| Control Interface | TTL level switch control，effective level can be selected high or low (see control terminal instructions for details) | ||
| Operating | Temperature：-10-40°C,；Relative Humidity：≤90% | ||
| Cooling Method | forced air cooling | ||
| Matching Laser Tube Power | 50-80W | 90-100W | 100-150W |
| Dimensions (mm) | 198×159×85 | 270×163×85 | 313×200×82 |
| Case Color | Blue | ||
| Weight (KG) Weight | 1.75 | 2 | 3.14 |
Warranty: 360 days
▶ The warranty period for power products is 12 months, calculated from the date of purchase.
▶ During the warranty period, faults that are not caused by human factors can be repaired free of charge; Malfunctions caused by human damage or excessive use require paid repairs.
▶ Before using this power supply, please read the manual carefully. We are not responsible for any damage or problems caused by improper use or failure to follow the manual
