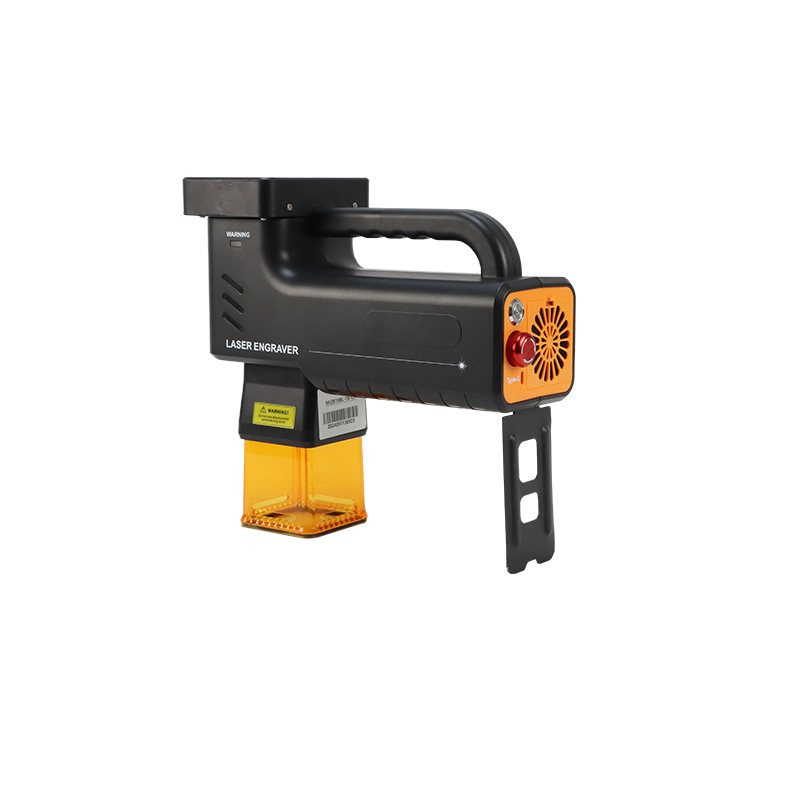

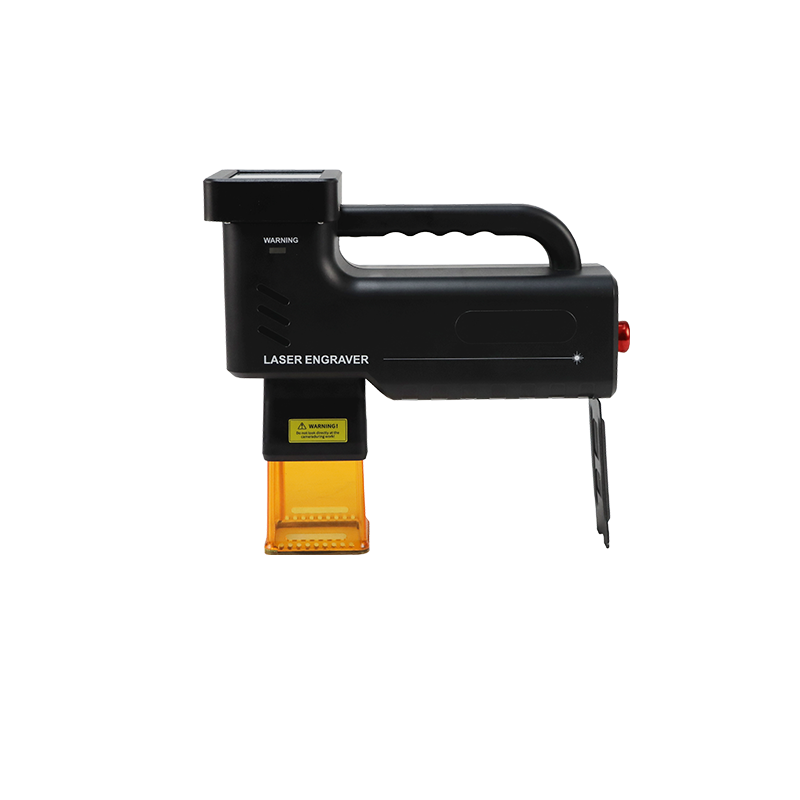

Portable lightweight design, the whole machine weighs only 2.7KG, compact and lightweight, easy to carry and store.
Dual light source switchable, versatile, suitable for various materials such as metal, bamboo, leather, paper, colored glass, plastic, ceramics, etc.
The carving speed is fast, and the processing speed can reach 4000mm/s.
High precision carving, easy to meet various processing needs.
Handheld auxiliary stand design, allowing for quick desktop switching and flexible switching.
TYPE-C power port design, suitable for common power banks and chargers, portable charging.
Lightweight design, the whole machine weighs only 2.7KG; Flexible charging, Type-C interface compatible with power banks/chargers; Equipped with an auxiliary stand, the handheld device instantly transforms into a desktop.
One machine with dual light sources, capable of carving various materials such as ceramics, metals, bamboo, leather, plastics, etc., accurately adapting to difficult to mark materials such as colored glass and paper.
Fast carving, processing speed of 4000mm/s; Focusing on fine spot and high degree of detail restoration; Lightweight without reducing configuration, meeting the high-frequency requirements of small production lines.
| Specifications | parameter |
|---|---|
| Power supply mode | Built in lithium battery power supply/DC20V (supports power bank power supply); |
| Whole machine power | ≤100W |
| Working environment temperature | 0°C~40°C |
| Working environment humidity | ≤80% |
| Optical parameters | |
| Light source quality | 1064nm/455nm |
| Laser working mode | Pulse |
| Power regulation range | 25-100 gradient adjustable |
| cooling method | Air cooling; |
| Carving Parameters | |
| Scanning range (length * width) | 55*55mm |
| Scene focal length | 133mm |
| Mechanical Parameters | |
| Machine weight | 2.7kg |
| Other Parameters | |

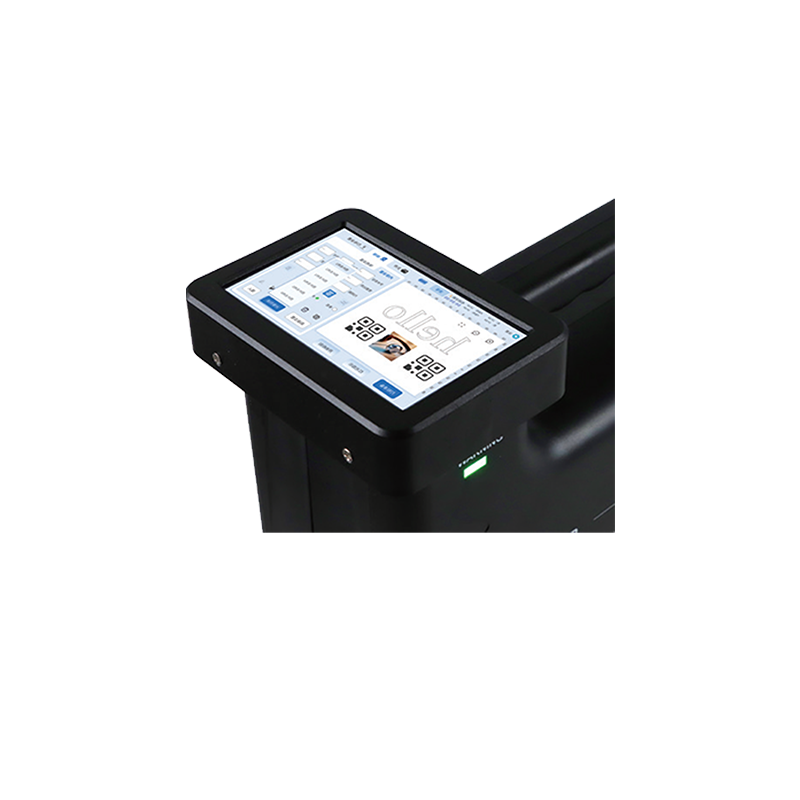

| Operation method | Mobile phones, computer apps, touch screens |
| Interface specification | Data interface: TYPE-A Power interface: TYPE-C |
Warranty: 360 days
▶ The warranty period for power products is 12 months, calculated from the date of purchase.
▶ During the warranty period, faults that are not caused by human factors can be repaired free of charge; Malfunctions caused by human damage or excessive use require paid repairs.
▶ Before using this power supply, please read the manual carefully. We are not responsible for any damage or problems caused by improper use or failure to follow the manual
