The maximum pulse output current can reach 500A; nbsp;
0-500A current with rising edge less than 10uS and falling edge less than 10uS; no current overshoot;
Output current ripple less than ± 1%;
Operating frequency 1-10Hz, pulse width 100-900uS;<; p="">
Multiple devices can control the output simultaneously, with a current synchronization error of less than 1uS; /p>
Hardware overcurrent and short circuit protection; Software overheating, output overvoltage, output overcurrent, input power failure protection, etc.
Multiple control methods: internal triggering, external triggering;
Touchscreen human-computer interaction interface, which can set multiple output parameters;

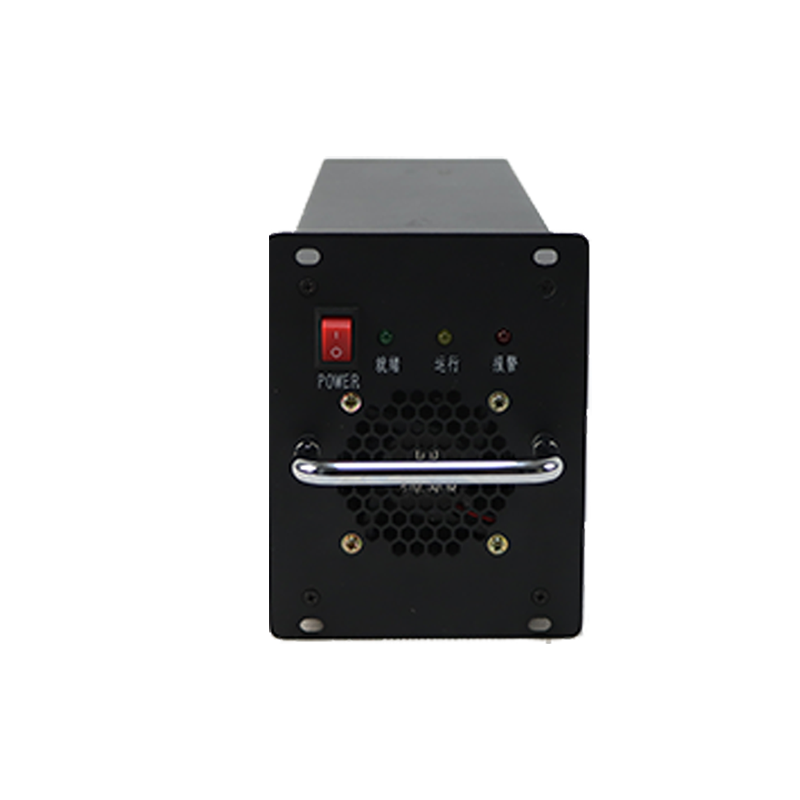

The chassis is equipped with status indicator lights, making the working status clear at a glance
;
500A high current output, rising/falling edge<10 μ s without overshoot, ripple<± 1%, adjustable pulse width between 100-900 μ s, meeting high-precision process requirements.
Supports synchronous output from multiple devices (error<1 μ s), with multiple hardware and software protections, touch screen human-machine interaction, and flexible and convenient parameter settings.
Hardware overcurrent/short circuit protection+software over temperature/overvoltage protection, real-time monitoring of chassis status indicator lights to ensure high reliability operation.
| Specifications | Parameter |
|---|---|
| Input Voltage Scope | AC176V-264V, 50/60Hz |
| Output Voltage | Voltage adaptive, output voltage up to 200V |
| Output Current | Output current 0-500A, constant current adjustable |
| Current Quality | Current ripple: ± 1%; Current stability: ± 1%; |
| Rising and falling edges of current | ≤ 10US |
| Pulse width and Work frequency | 100-900μS, 1-10Hz |
| Whole machine output power | 900W |
| Control | Internal trigger/external trigger |
| Protect | Hardware overcurrent and short circuit protection; Software overheating, output overvoltage, overcurrent, input power failure protection |
| Temperature/Humidity | Work：-25-60℃，20-90%RH，No condensation； Storage：-40-85℃，10-95%RH，No condensation |
| Insulation | Voltage Resistant： 1500Vac 10mA 60S，Insulation resistor≥ 10MΩ |
| Volume | 520mm*120mm*100mm |
| Weight | 10kg |
| Cooling Method | air cooling |
Warranty: 360 days
▶ The warranty period for power products is 12 months, calculated from the date of purchase.
▶ During the warranty period, faults that are not caused by human factors can be repaired free of charge; Malfunctions caused by human damage or excessive use require paid repairs.
▶ Before using this power supply, please read the manual carefully. We are not responsible for any damage or problems caused by improper use or failure to follow the manual
